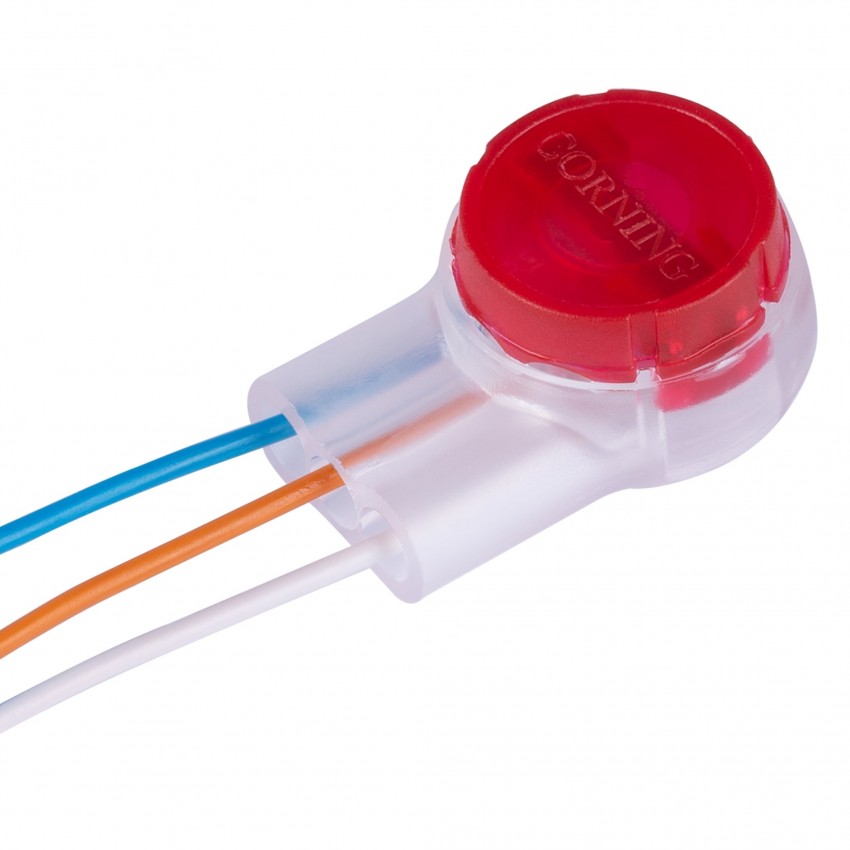

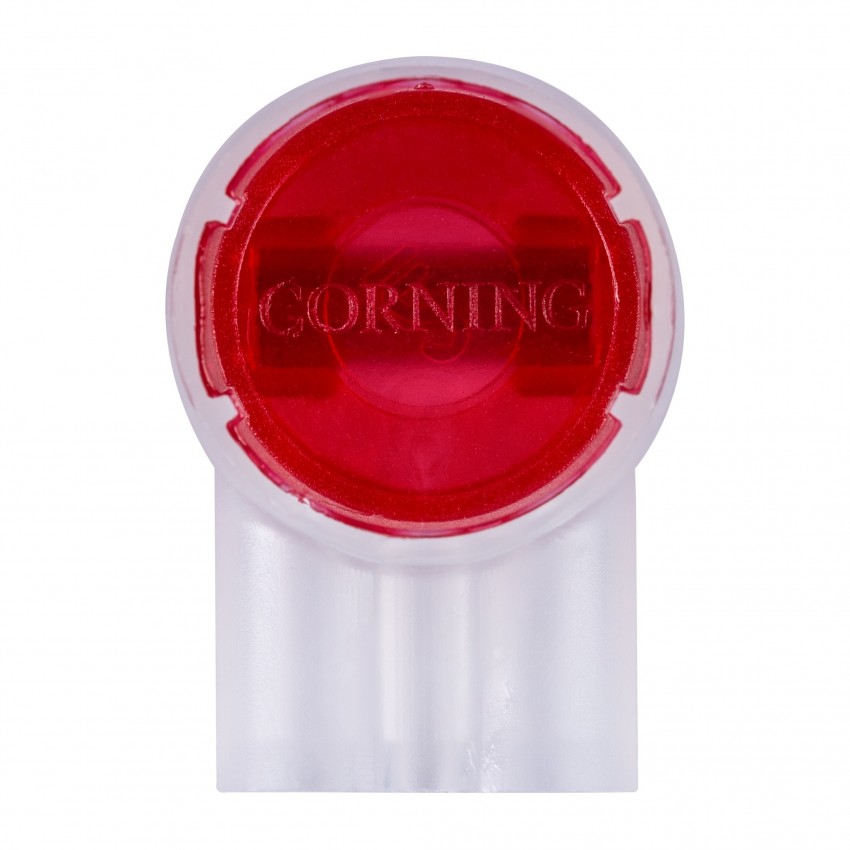

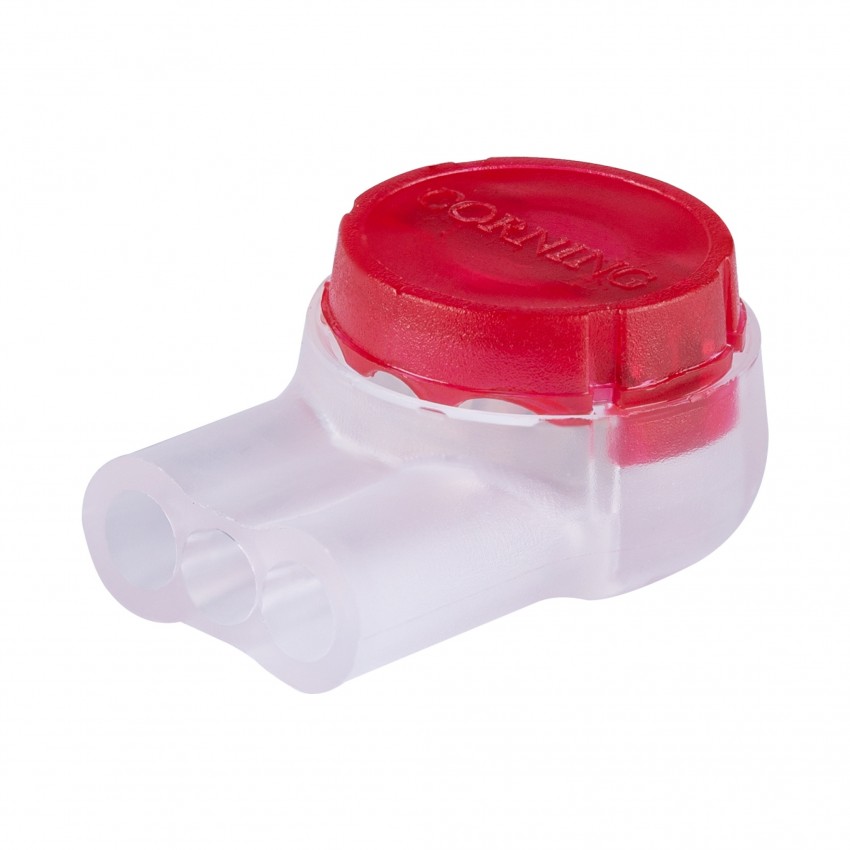

Corning Presslok UR2 Connectors (100pcs)
£27.00
Excluding VAT
£22.50
Availability
In Stock
Product Code
A-UR2
Description
Self -stripping, insulated and moisture resistant butt connector for 2 or 3-wire solid copper conductor combinations of 26-19AWG (0.4-0.9mm) having maximum insulation O.D. of 0.082 inches (2.08mm).
Features & Benefits
- The UR2 solvent resistant connectors will accommodate any combination of two or three 19 to 26 AWG (0.9 to 0.4 mm) copper wires for butt splicing
- UR2 butt connectors employ a wire insulation displacement contact to make a reliable electrical connection to connect two wires together. No stripping of wire insulation is required

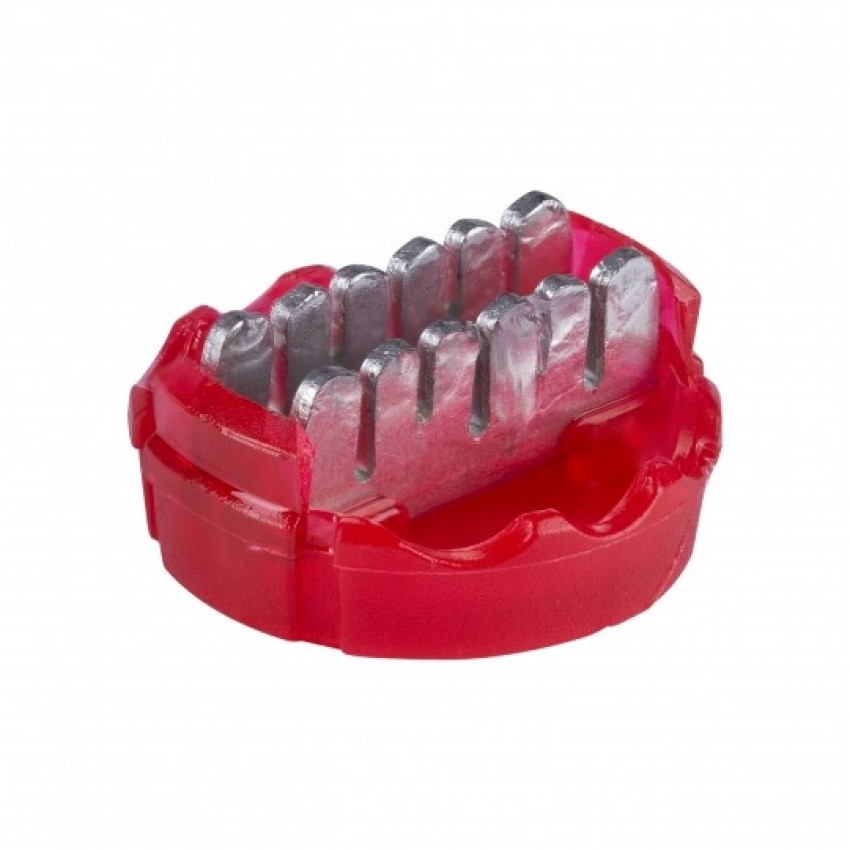

- Simply insert trimmed wire ends into the connector and crimp. A livespring joint is made by forcing the wire down into the U contact connector. This displaces the insulation and grasps all conductors with a firm, resilient pressure
- Factory-installed sealant insulates the connection, protects against corrosion and seals out moisture
- Fast and easy to work with
- Pack quantity: 100 pcs
Note: This is a genuine product. Corning has acquired 3M's communication markets.
