12V
IP65
5 Year Warranty
M2 Module (20)
£21.60
Excluding VAT
£18.00
Availability
In Stock
Product Code
M2 Module
Description

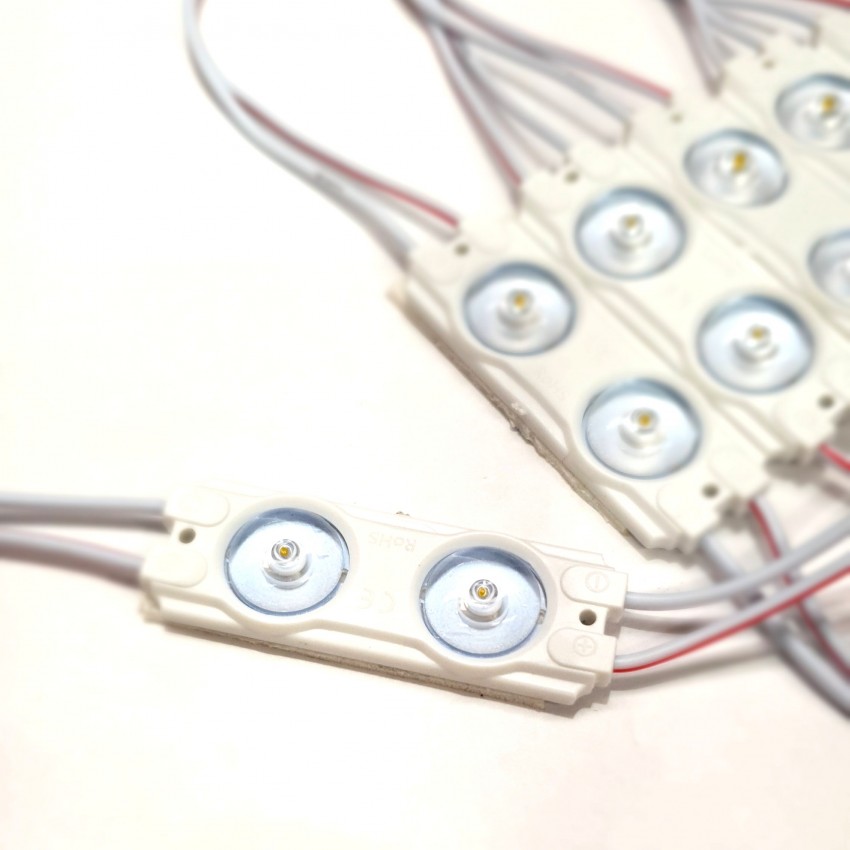

The M2 module is a low profile injection moulded LED module with an aluminium PCB for improved heat dissipation.
Each module features 2 no. 160˚ wide angle optical lenses with premium grade, high efficiency LED chips for high brightness and reliability.
The modules are very bright 6500K and consume only 0.7 Watts of power.
Special Features
- 2 no. 160˚ wide angle optical lens per module
- High brightness, energy efficient and even spread of light. LED type 2835
- Modules have 150mm length of wire between them for versatility
- Low profile and compact size: dimensions 49*17*6mm
- IP65 waterproof
- Suitable for returns between 50-150mm
- 12 Volts, 0.7W per module
Applications
- Medium - large channel letters
- Sign Trays
- Light boxes
Price per 20 pcs.
Specification
Environment
IP Rating
IP65
Technical Details
Colour Temperature
6500K
Special Features
2 no. 160˚ wide angle optical lens per module; high brightness; low profile
Voltage
12V
Application
Medium to large channel letters, sign trays, sign boxes.
Depth of Return
50-150mm
Power
0.7W per module
Beam Angle
160
Dimensions
49*17*6mm
Distance Between Modules
150mm
Maximum Series Connection
20 pcs
Quantity per Pack
20
Lifespan
Warranty
5 years
