E10 (45mm ⌀) Single Cabochon

£3.96

Excluding VAT
£3.30
Availability
In Stock
Product Code
E10 Single Cabochon Unit

Description

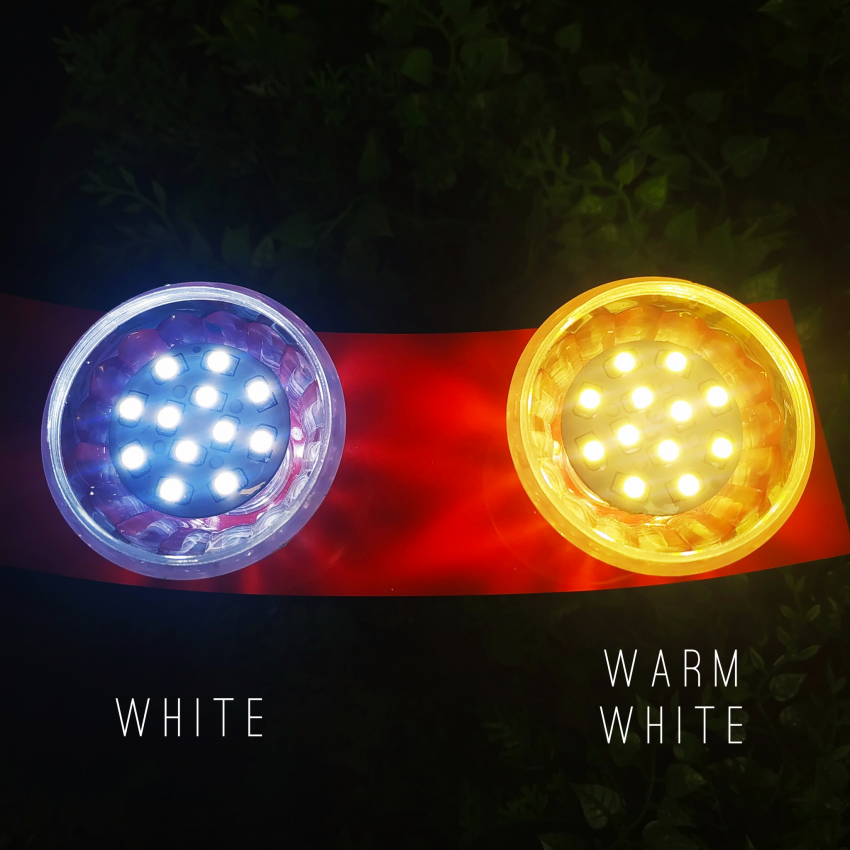

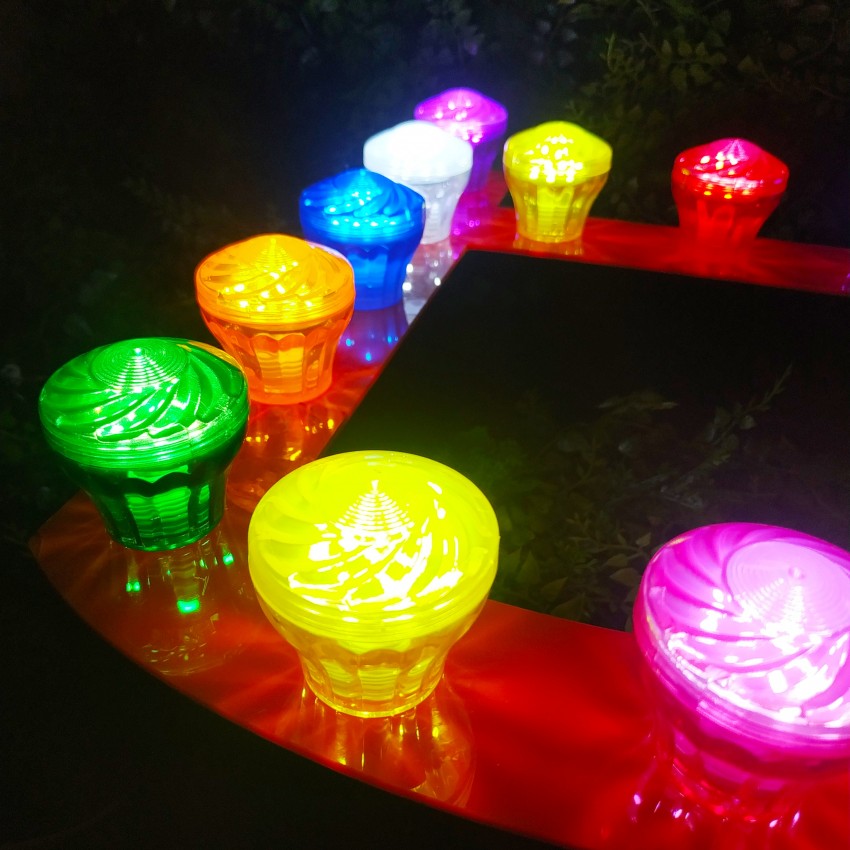

Available in eight colours and with a choice of cool white or warm white LEDs these smooth, polished fairground cabochons create a bright, vibrant effect.

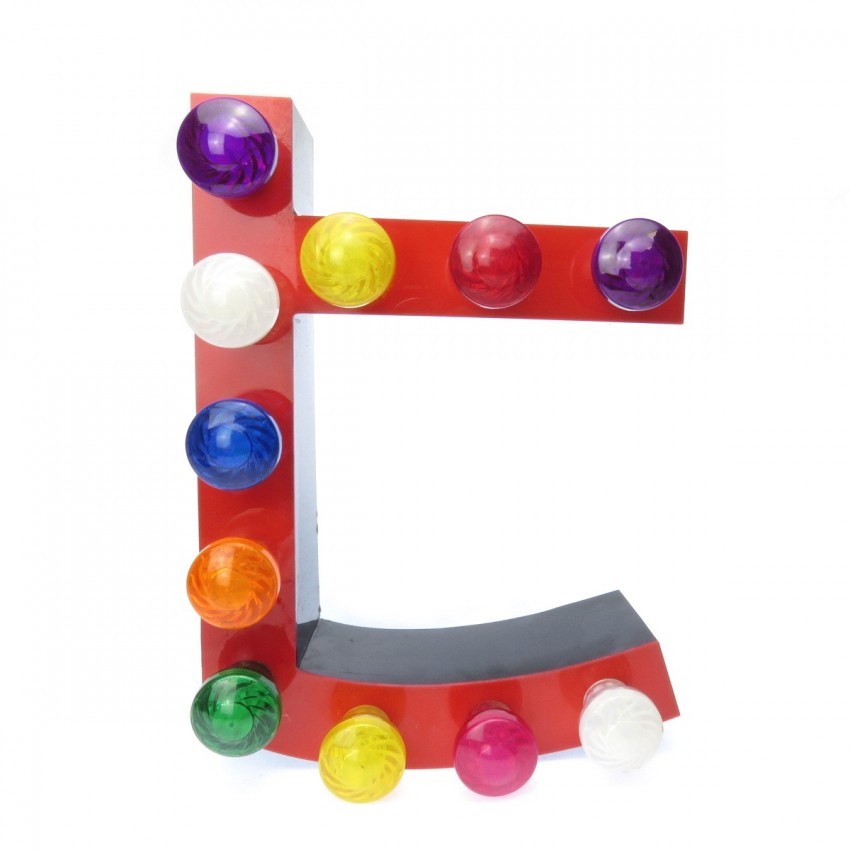

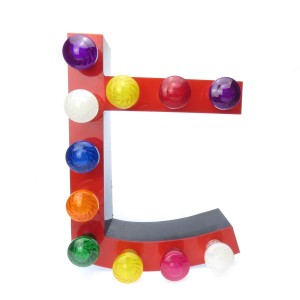

Perfect for retro letter lights, festival signs, fairgrounds and customised wedding signs.

Dimensions: 45*45mm (fixing hole 15 mm), 0.8W per bulb.

How to Install

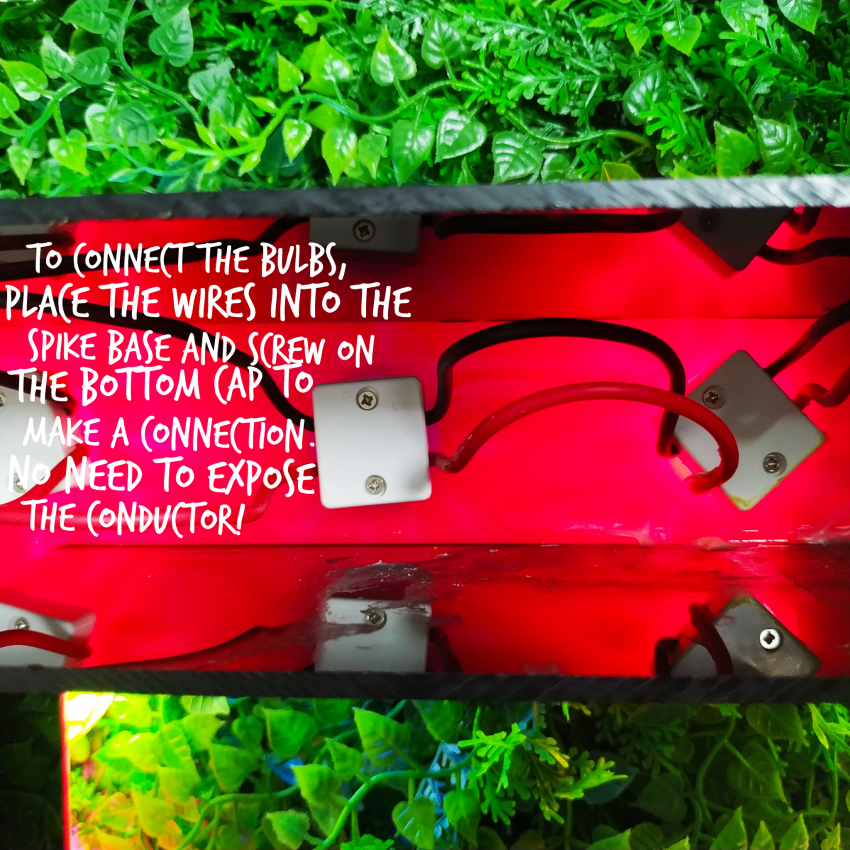

Whether you’re making letter lights or creating an illuminated sign the E10s are easy and fast to install. First, drill a 15mm hole into the letter face or panel and push the lamp holder through the back of the hole. Screw the E10 base cap onto the lamp holder, then screw in the LED bulb, followed by the lens cap. For the wiring, there's no need to expose the conductor; just place the wire in the two channels and screw on the bottom cap to make a connection. If you ever need to replace a bulb, just pop off the front facing cap.

How to Power

You'll need a 24V driver. Each bulb consumes 0.8W of power, so a Spectron slimline 30W driver will be suitable for 37 bulbs. An 80W driver will cover you for 100 bulbs.

Note: our drivers allow for 100% usage. If you're using your own driver you'll need to allow 20% headroom.

What's Included

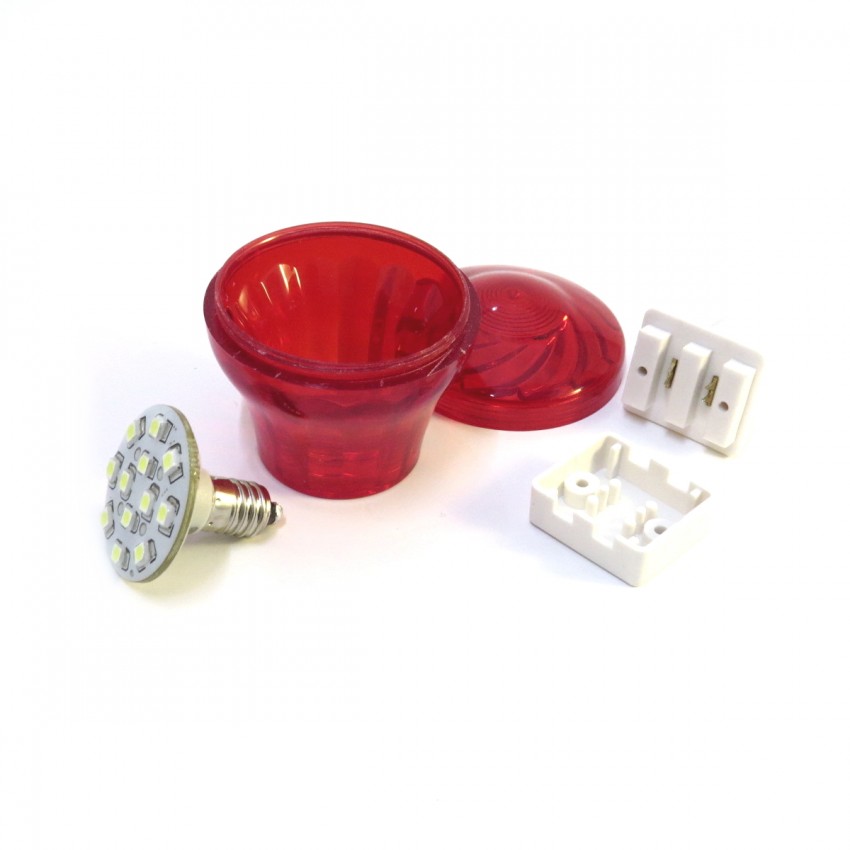

A single unit includes:

  • 1 x LED E10 bulb (cool white or warm white)
  • 1 x lens cap
  • 1 x base cap
  • 1 x white lamp holder with spike base
  • 1 x white base cap with wire channels and screw holes

E10 bulbs are currently subject to a lead time of 5 days.

Specification
Environment
IP Rating
IP44
Technical Details
Voltage
24V
Power
0.8W per bulb
Lumen
Pure white (140Lm) Warm white (115Lm)
Number of LEDs
16 (12 to the face, 4 to the back)
Dimensions
45*45mm (fixing hole 15 mm)
